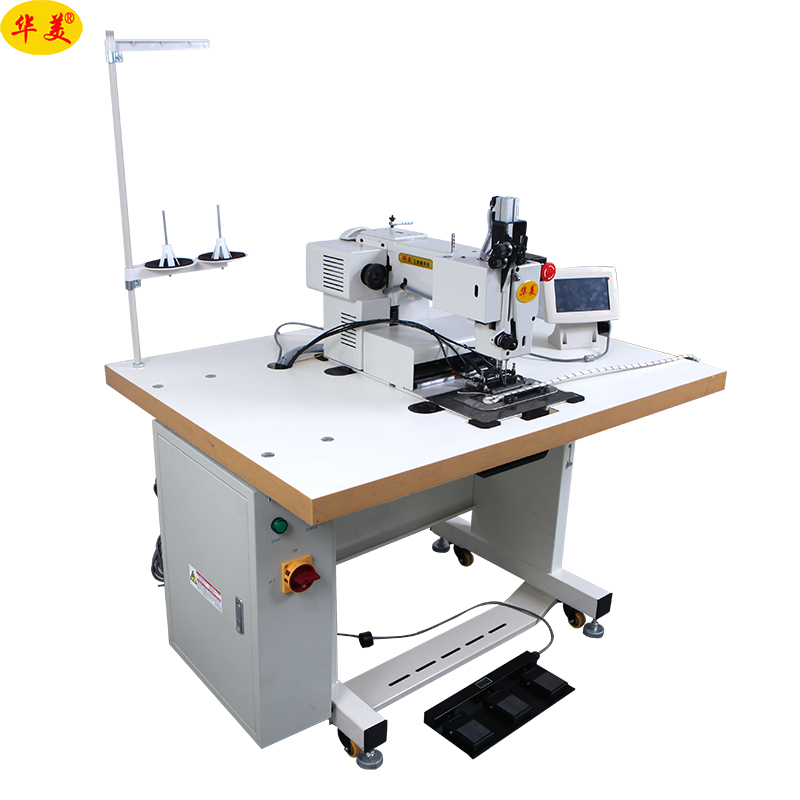

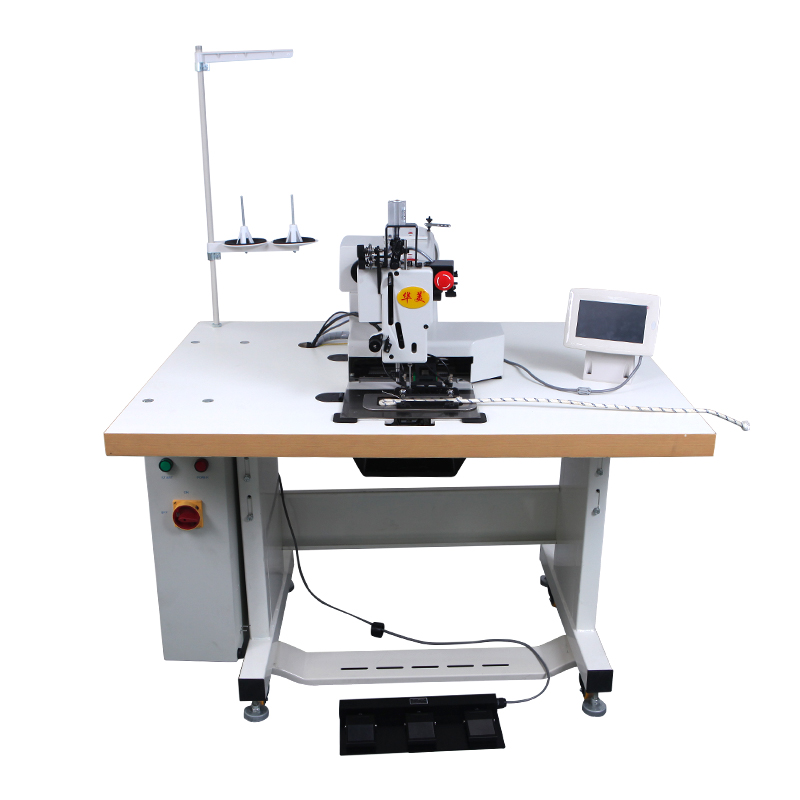

HM-1306特厚料

详细信息

安全带、织带、宠物带等产品缝制而设计,缝制线路均匀美观、拉力稳定。

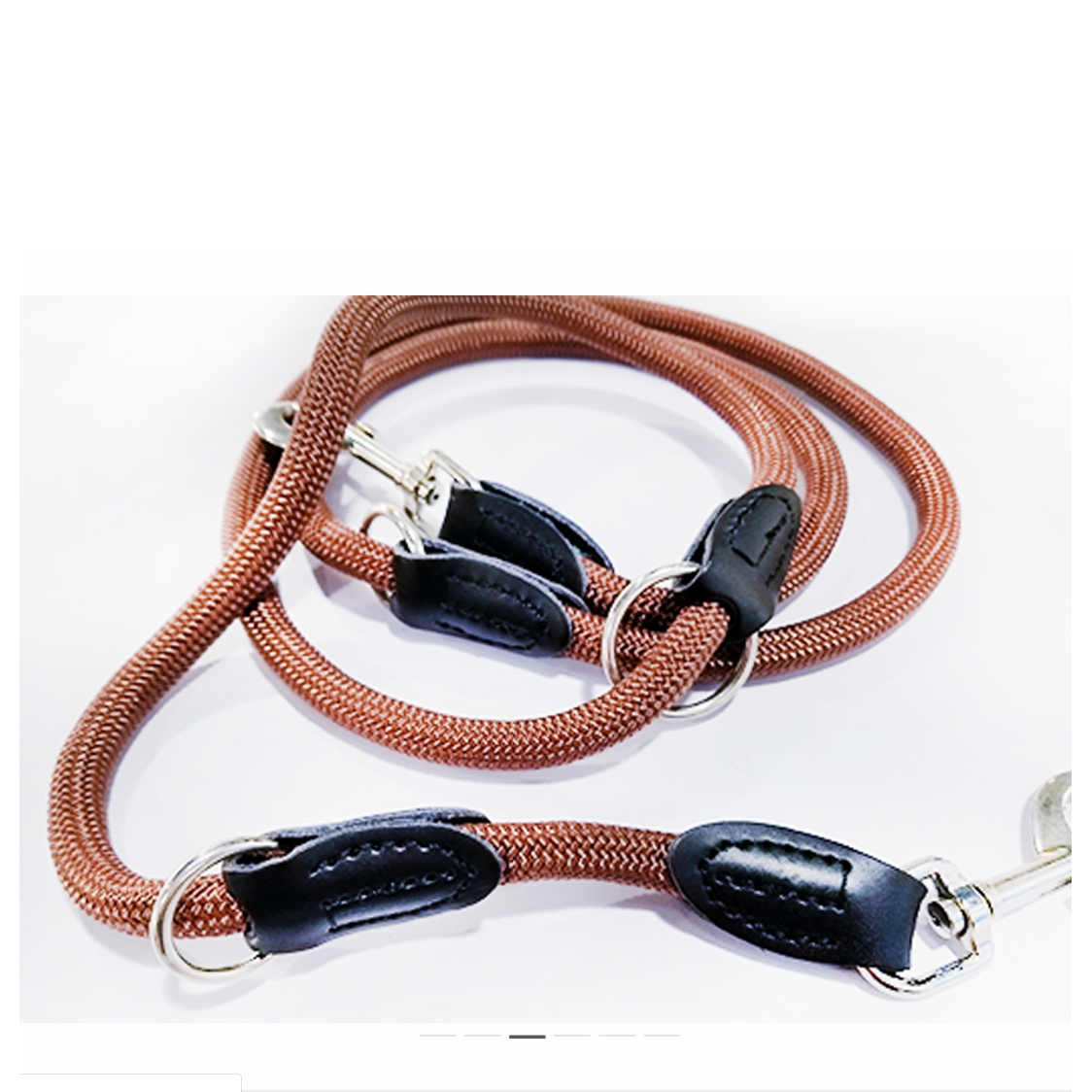

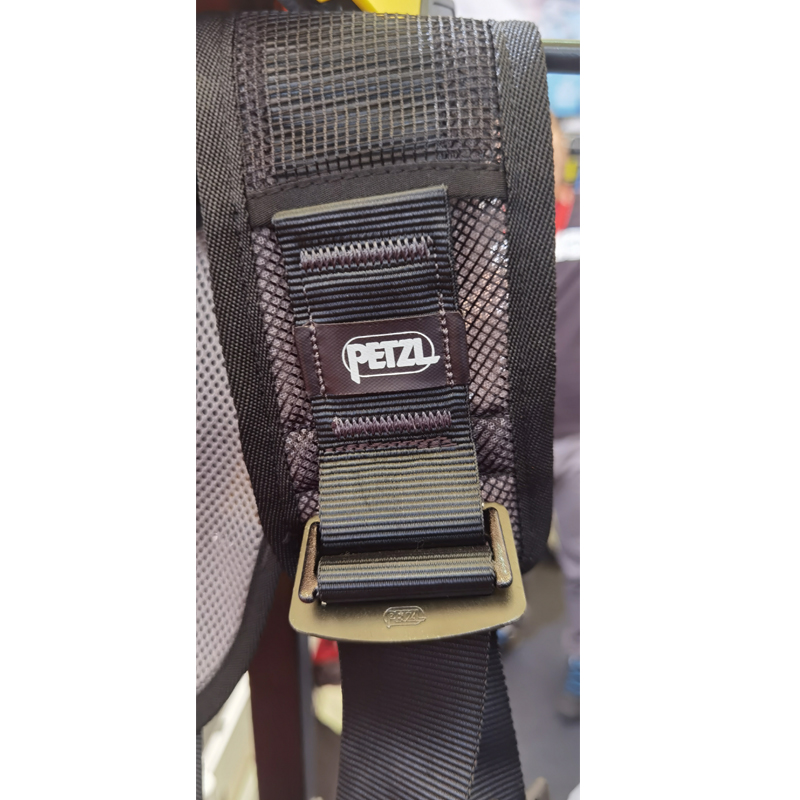

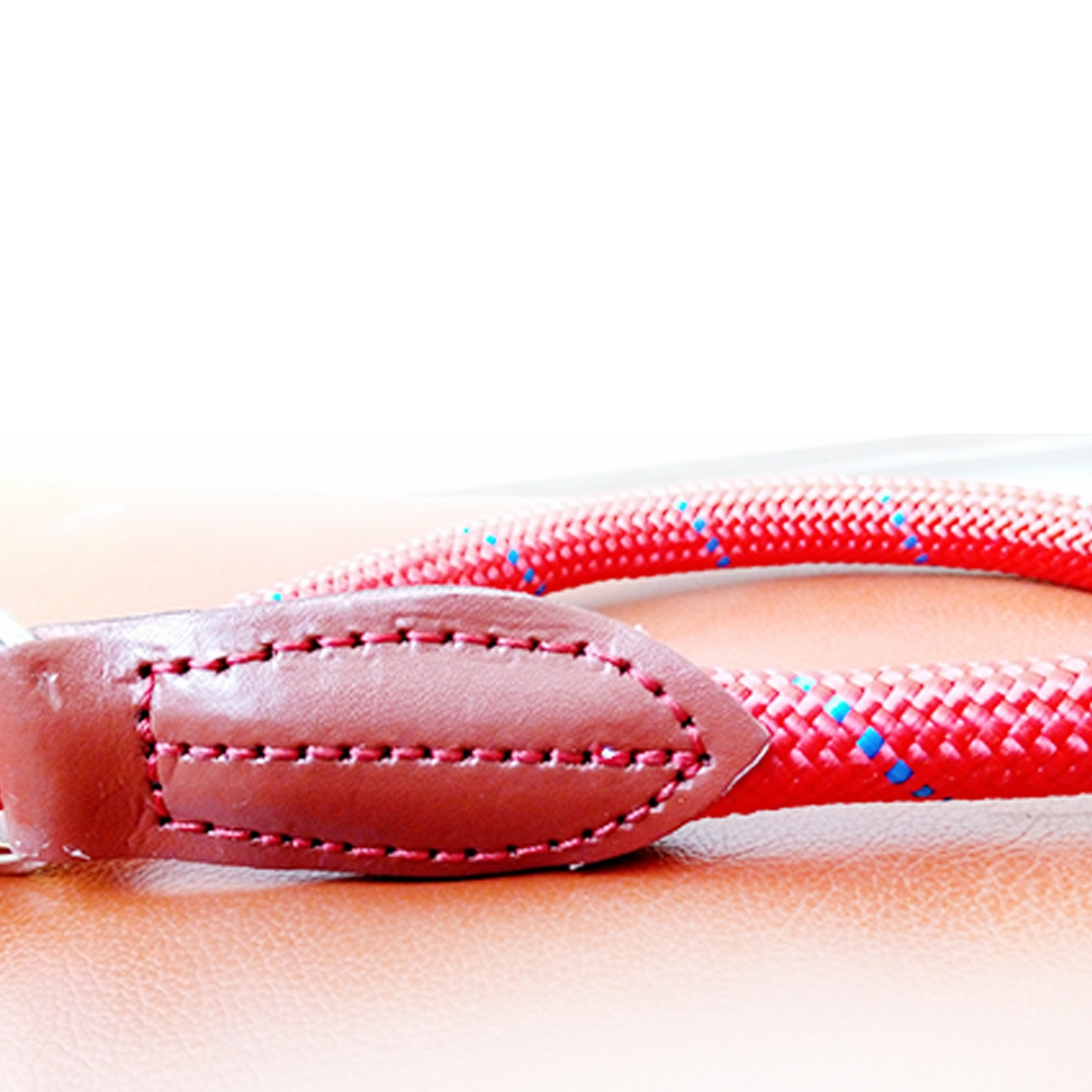

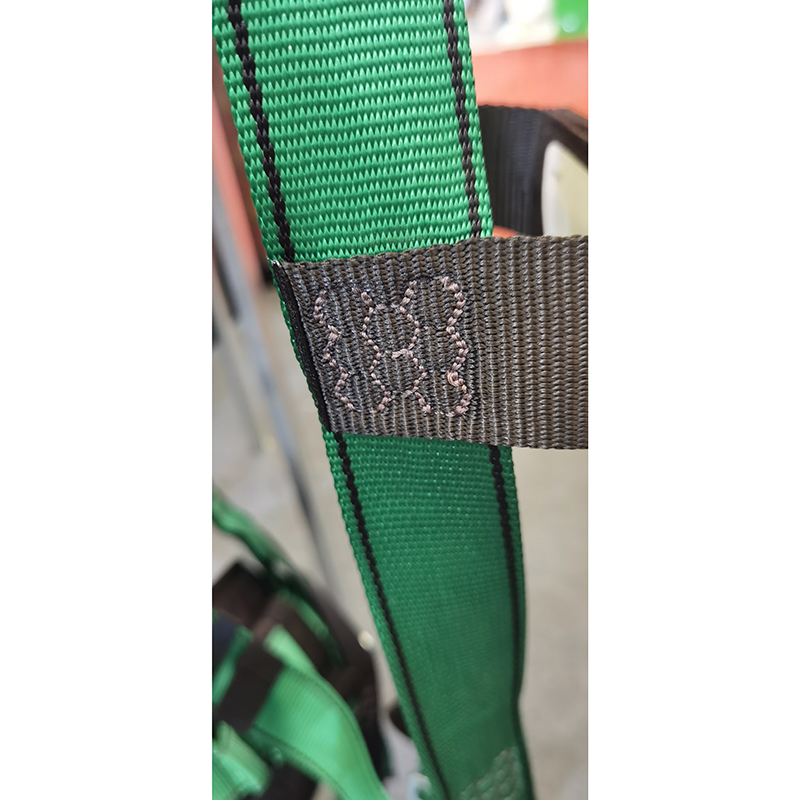

Safety belts,  webbing sling  and pet strap products are designed for sewing. The sewing lines are even and beautiful, and the pulling force is stable.
最粗可以缝制1000D线,本机器带自断剪线功能。

The thickest can sew 1000D thread, this machine has a self-breaking thread cutting function.

本机型严格按照出口品质标准。

This model is assembled in strict accordance with the export quality standards。
八年以上高级技术工程师装配而成。
Assembled by senior technical engineers over eight years.
本机型经过多次优化改良,操作简单,不需要熟练缝纫工。
This model has been optimized and improved many times, and the operation is simple, without skilled sewing workers.
高于普通机型的生产效率。
Higher production efficiency than ordinary models.

全新液晶触摸屏电控人性化操作面板,非专业人员20分钟左右学会操作,机身存储1000种图案(外置U盘不限)。

The new LCD touch screen electronicallycontrolled humanized operation panel, can stores 1000 patterns.

三倍摆梭最大容线量可达80米左右(1500D)。

The maximum line capacity of the three times shuttle hook  can reach about 80 meters (1500D).

华美采用气动剪线结构。

Thread trimming structure of Huamei seatbelt.






机器型号技术参数


    型号MODEL

项目item

HM-1306GH

缝纫范围Sewing area

130mm *60mm

线迹形式Stitching type

Single needle, lockstitch

最高缝速Max speed

200-2800RPM

针距设定Stitching pitch

0.1-12.7MM

最大针数Max. stitches

8000  stitches/pattern



最大图案数Maximum number of patterns

Store 1000 fuselage design, external usb design for unlimited



使用旋梭Hook

  Double size rotary hook



使用机针Machine needle

DPX17#14-25

外压脚提升高度Lifting height of internal presser foot

38MM

内压脚提升量Lifting capacity of middle presser foot

4-10MM

压脚形式Presser foot form of middle presser foot

MOTOR

Voltage

AC, 220 v, with grounding protection

尺寸(无包装)Dimensions (without packaging)

1600MM*1470MM*1250MM

尺寸(带包装)Dimensions (with packaging)

1650MM*1520MM*1360MM

重量Weight

480KG
