详细信息
The thickest can sew 1000Dthread, this machine has a self-breaking thread cutting function.
效率相当于传统生产方式的 8-15 倍。
Theefficiency is equivalent to 8-15 times that of traditional production methods.
本机型严格按照出口品质标准。
This model is assembled in strictaccordance with the export quality standards 。
八年以上高级技术工程师装配而成。
Assembled by seniortechnical engineers over eight years.
本机型经过多次优化改良，操作简单，不需要熟练缝纫工。
This model has beenoptimized and improved many times, and the operation is simple, without skilledsewing workers.
高于普通机型的生产效率。
Higher production efficiency than ordinarymodels.
全新液晶触摸屏电控人性化操作面板， 非专业人员 20 分钟左右学会操作，
机身存储 100 种图案（外置 U 盘不限）。
The new LCD touch screen electronically controlled humanizedoperation panel, can stores 1000 patterns.
华美采用全自动绕线器。
Huamei adopts automatic windingmachine.

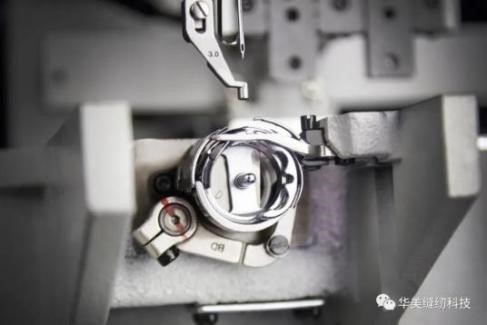

2 倍旋梭最大容线量可达 60 米左右。
Thedouble hook can reach about 60 meters.
节约工人绕线时间和成本。
Save workers' time and cost.
刀片夹住线头，放上梭芯即可自动绕线。
The blade clamps the thread headand puts the bobbin to automatically wind the thread.
绕线均匀，缝制产品良品率高。
The winding is even and the yieldrate of the sewn product is high.

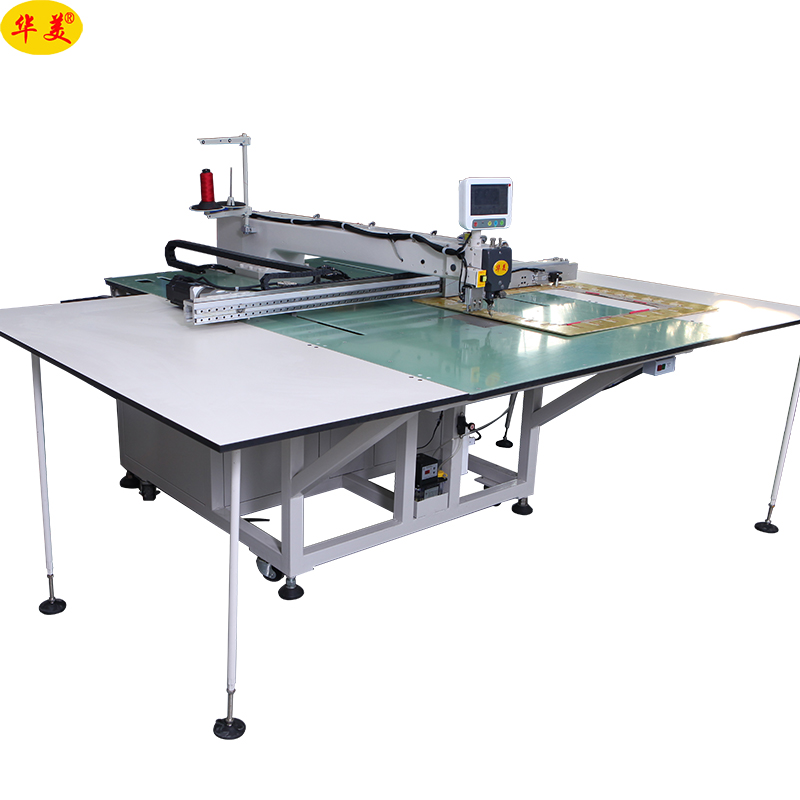

MODEL | HM-12090GH |
Sewing range | 1200mm*900mm |
Stitching type | Single needle, lockstitch |
Max speed | 200-2800RPM |
Stitching pitch | 0.1-12.7MM |
Max. stitches | 20000 stitches/pattern |
Maximum number of patterns | Store 1000 fuselage design, external usb design for unlimited
|
Hook | Double size rotary hook
|
Machine needle | DPX17#14-25 |
Lifting height of internal presser foot | 60MM |
Lifting capacity of middle presser foot | 4-10MM |
Presser foot form of middle presser foot | AIR |
Voltage | AC, 220 v, with grounding protection |
Dimensions (with packaging) | 2500MM*1960MM*1360MM |
Weight | 1000KG |
