详细信息
The thickest can sew 1000D thread, this machine has a self-breakingthread cutting function.
效率相当于传统生产方式的 8-15 倍。
Theefficiency is equivalent to 8-15 times that of traditional production methods.
本机型严格按照出口品质标准。
This model is assembled in strictaccordance with the export quality standards 。
八年以上高级技术工程师装配而成。
Assembled by seniortechnical engineers over eight years.
本机型经过多次优化改良，操作简单，不需要熟练缝纫工。
This model has beenoptimized and improved many times, and the operation is simple, without skilledsewing workers.
高于普通机型的生产效率。
Higher production efficiency than ordinarymodels.

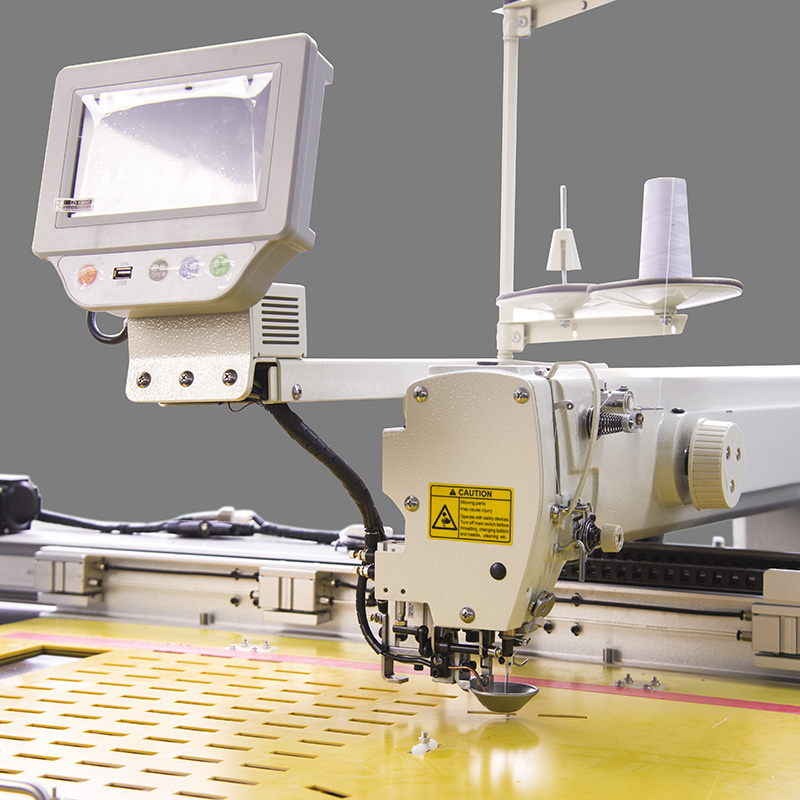

全新液晶触摸屏电控人性化操作面板， 非专业人员 20 分钟左右学会操作，
机身存储 100 种图案（外置 U 盘不限）。
The new LCD touch screen electronically controlled humanizedoperation panel, can stores 1000 patterns.
华美采用全自动绕线器。
Huamei adopts automatic winding
machine.
2 倍旋梭最大容线量可达 60 米左右。
The
double hook can reach about 60 meters.
节约工人绕线时间和成本。
Save workers' time andcost.
刀片夹住线头，放上梭芯即可自动绕线。
The blade clamps the thread head
and puts the bobbin to automatically wind the thread.
绕线均匀，缝制产品良品率高。
The winding is even and the yield
rate of the sewn product is high.
规格 | HM-12090GH |
缝纫范围Sewing area | 1200mm*900mm |
线迹形式Stitching type | Single needle, lockstitch |
最高缝速Max speed | 200-2800RPM |
针距设定Stitching pitch | 0.1-12.7MM |
最大针数Max. stitches | 20000 stitches/pattern |
最大图案数Maximum number of patterns | Store 1000 fuselage design, external usb design for unlimited |
使用旋梭Hook | Double size rotary hook |
使用机针Machine needle | DPX17#14-25 |
外压脚提升高度Lifting height of internal presser foot | 60MM |
内压脚提升量Lifting capacity of middle presser foot | 4-10MM |
压脚形式Presser foot form of middle presser foot | AIR |
Voltage | AC, 220 v, with grounding protection |
尺寸（带包装）Dimensions (with packaging) | 2500MM*1960MM*1360MM |
重量Weight | 1000KG |
